ZPSM024 High Performance Industrial Magnetic Limit Reed Proximity Sensor Switch with NPN Normally Open Output

Name: ZPSM024 High Performance Industrial Magnetic Limit Reed Proximity Sensor Switch with NPN Normally Open Output
Brand: Maknopc
Price: 5.75 USD

Wholesale ZPSM024 High Performance Industrial Magnetic Limit Reed Proximity Sensor Switch with NPN Normally Open Output from china suppliers

Indicator light : Red color

Shell material : Glass fiber reinforced resin: black

Protection class : IP67

Response time : 5μ sec

Output current : 12mA MAX

weight (kg) : 0.5

Supply Voltage : DC5~24V

Detection Poles : ZPSM024 -S: S pole; ZPSM024 -N: N pole

Magnetic detection direction : Forward

Price : $5.75-6.58 / piece

Place of Origin : Guangdong, China

Machine Type : Punching Machine, Milling Machine, lathe machine, Grinding Machine, Drilling Machine

Current consumption : 15mA MAX

MOQ : 1 piece

Magnetic sensitivity : 2.5~3.5mT

Brand Name : Maknopc

warranty : 1 Year

Contact Now

Products Description

Makinopc's Magnetic proximity sensors are used for non-contact object detection beyond the normal limits of inductive sensors. Our magnetic sensors deliver reliable, accurate data to help control your system.

Key Features

●Magnetic proximity sensors are sensors that operate ON and OFF according to changes in the strength of the magnetic field. ●The operating principle is the Hall principle, which detects the magnetic field according to its polarity, and the standard detection pole is the S pole. ●Because of the short response time (5μsec or less), it can also be used for tachometers and speedometers. ●Compared with general proximity sensors, it is characterized by high sensitivity, large detection distance, and small size. ●Can perform both home position and over-travel detection of servo mechanisms with only one dual sensor. ●Strong resistance to electromagnetic interference and high reliability.

Product Paramenters

Supply Voltage	DC5～24V
Detection Poles	ZPSM024 -S: S pole
Detection Poles		ZPSM024 -N: N pole
Magnetic sensitivity	2.5～3.5mT
Magnetic detection direction	Forward

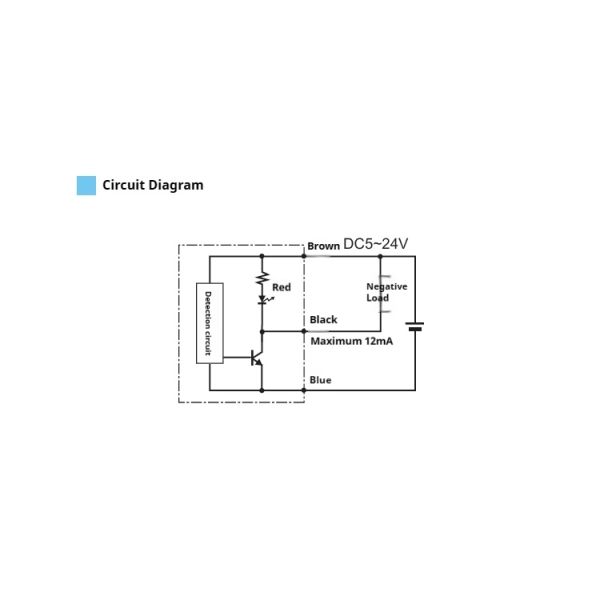

Output mode	NPN normally open (ON when close)
Output current	12mA MAX
Current consumption	15mA MAX
Response time	5μ sec
Withstanding Voltage	AC1000V
Withstanding Voltage		(1 minute, between the whole charging part and the case)
Insulation resistance	DC250V
Insulation resistance		(20MΩ or more, between the whole charging part and the case)
Operating Ambient Temperature	-20℃～+85℃ (no condensation)
Humidity	20～95%RH
Wire Specification	φ2.8×1m
		S pole: Gray
		N-pole: Black
Shell material	SUS303

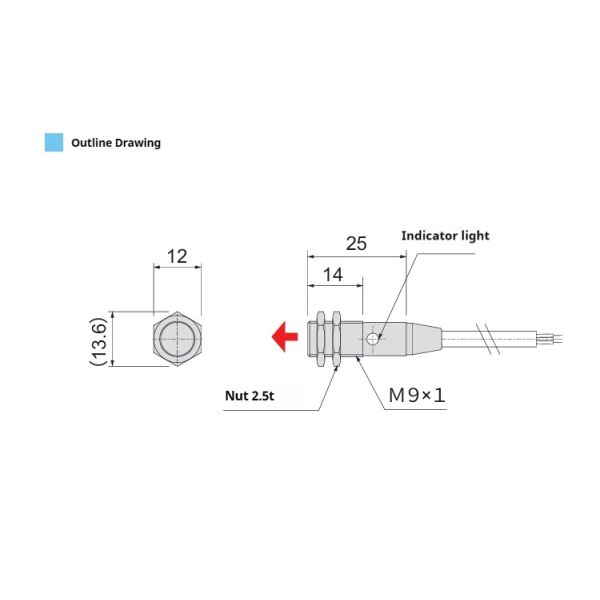

Installation	M9 nut Tightening torque 0.5N-m
	It is recommended to prevent loosening by using an adhesive or the like.
Mounting aperture processing size	φ9 +0.5 / 0
Indicator light	Red color
Protection Class	IP67

※Output conversion and current increase can be realized by wire attachment.

Details Images

ZPSM024 High Performance Industrial Magnetic Limit Reed Proximity Sensor Switch with NPN Normally Open Output

※Output conversion and current increase can be realized by wire attachment.
