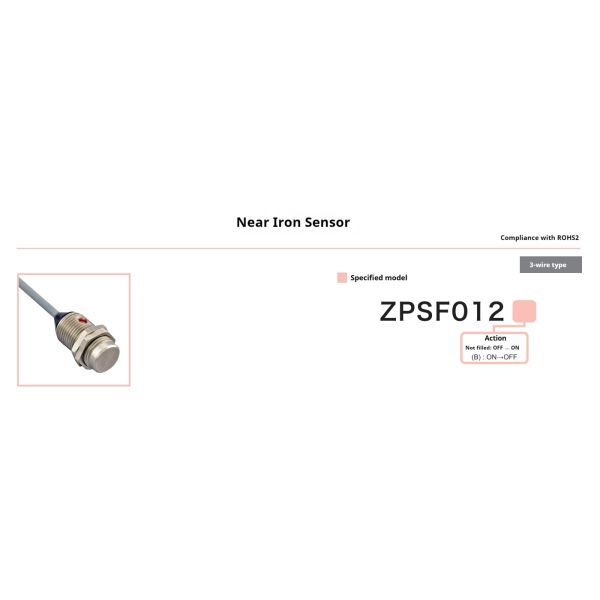

Original Magnetic Sensitive Proximity Near Iron Sensor with Indicator Light for CNC Machine Tool Magnetic Detection ZPSF012

Name: Original Magnetic Sensitive Proximity Near Iron Sensor with Indicator Light for CNC Machine Tool Magnetic Detection ZPSF012
Brand: Makinopc
Price: 5.70 USD

Wholesale Original Magnetic Sensitive Proximity Near Iron Sensor with Indicator Light for CNC Machine Tool Magnetic Detection ZPSF012 from china suppliers

warranty : 1 Year

weight (kg) : 0.5

Machine Type : Punching Machine, Milling Machine, lathe machine, Grinding Machine, Drilling Machine

Price : $5.70-9.50 / piece

Place of Origin : Guangdong, China

Brand Name : Makinopc

MOQ : 1 piece

Contact Now

Products Description

Key Features

ZPSF012 is Makinopc's square magnetic proximity sensor, which detects only magnetic substances such as iron and does not react to non-magnetic substances such as aluminum and stainless steel. ZPSF012 is often used as a locator for CNC machine tools and non-standard equipment.

Product Paramenters

Supply Voltage	DC5～24V
Magnetic detection direction	Forward
Maximum detection distance	Please refer to the distance detection test example
Output mode	ZPSF012:
	NPN normally open (ON at proximity)
	ZPSF012(B)
	NPN normally closed (OFF at proximity)
Output current	12mA MAX
Current Consumption	15mA MAX
Response time	30msec
Withstanding Voltage	AC1000V
	(1 minute, between the whole charging section and the case)
Insulation resistance	DC250V
	(20MΩ or more, between the whole charging part and the case)
Operating Ambient Temperature	-20℃～+85℃ (no condensation)
Humidity	20～80%RH
Wire Specification	φ2.8×1m
	ZPSF012: Gray
	ZPSF012(B): Black color
Shell material	SUS303
Installation	M12 nut, tightening torque 12N-m
Mounting aperture processing size	φ12 +0.5 / 0
Indicator light	Red color

※ Output conversion and current increase can be realized by wire accessories.

Example of distance test (test in horizontal direction)

Testing material	Detection distance approx.
Square iron plate 50×10t	6
Iron plate 10t width 10	5
Iron plate 0.05t width 10	4
High speed steel drillφ2	3
Iron plate 0.03t width 10	2

*Note*.

1. When the sensor detects downward, the detection distance increases by about 10%, and when it detects upward, the
detection distance decreases by about 10%. The detection distance decreases by about 10% when the sensor detects downward and upward.
2. The sensor has a magnetic gravitational field, so please fix the testing material.
3. Test values are reference values, not guaranteed values.
4. Cannot be used as a position detection sensor.
