CNC Machining Centers 5-direction Tool Setter Measurement Detection XYZ Axis Sensor with 4 Wires and 2 Sets of signal Outputs

Name: CNC Machining Centers 5direction Tool Setter Measurement Detection XYZ Axis Sensor with 4 Wires and 2 Sets of signal Outputs
Brand: makinopc
Price: 449 USD

Wholesale CNC Machining Centers 5-direction Tool Setter Measurement Detection XYZ Axis Sensor with 4 Wires and 2 Sets of signal Outputs from china suppliers

Condition : New

Core Components : Bearing, Pressure Vessel, Gear, Alloy

Repeatability : 0.001mm (condition: operating speed 50-200mm/min)

Transmission Mode : Hardwire connection transmission

Measuring direction : ±X,±Y, +Z

Marketing Type : Ordinary Product

Surface treatment : Grinding 4S mirror

Showroom Location : None

machinery test report : Not Available

Brand Name : makinopc

Contact Diameter : 14-20mm

Contact strength : XY plane 0.4N-0.8N, Z direction 5.8N (depending on sensing direction)

Applicable Industries : Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Construction works , Energy & Mining

Contact life : >10 million times

Contact part material : Super hard alloy

Price : $449 / piece

Stroke : XY plane 12.5°, 2-way 6.35mm

Place of Origin : Guangdong, China

MOQ : 1 piece

weight (kg) : 2

video outgoing-inspection : Provided

warranty : 1 Year

Output Mode : normally open

Contact Now

Products Description

Brief Introduction

MS28R Multi-directional tool setting probe, a contact type 3-dimensional tool setting probe, uses a cable to transmit electrical signals, and the measurement signals from the probe are output to the CNC in real time via the cable, together with a dedicated macro program. It is used to perform breakage detection on a wide range of tools as well as rapid measurement of tool length and diameter, automatic compensation and broken tool detection. Mainly used in various types of vertical and horizontal machining centers and various gantry machining centers.

Product Paramenters

Product Name	Five Direction Tool Setting Instrument
Product Model	MS28R
Output Mode	normally open
Transmission Mode	Hardwire connection transmission
Contact Diameter	14-20mm
Measuring direction	±X,±Y, +Z
Contact part material	Super hard alloy
Surface treatment	Grinding 4S mirror
Repeatability	0.001mm (condition: operating speed 50-200mm/min)
Contact life	>10 million times
Contact strength	XY plane 0.4N-0.8N, Z direction 5.8N (depending on sensing direction)
Protection structure	IP68
Stroke	XY plane 12.5°, 2-way 6.35mm
Pre-travel	None
Contact rating	DC24V~20mA(MAX) Recommended value 10mA Resistance load
Power supply	12-30VDC
Cable specification	Standard 5m (6.0mm diameter, 4 core shielded cable)
Protection Tube	2m
Precautions	Be sure to use it within the rated power range. (12-30VDC) Mounting base requires grounding protection or shielding.

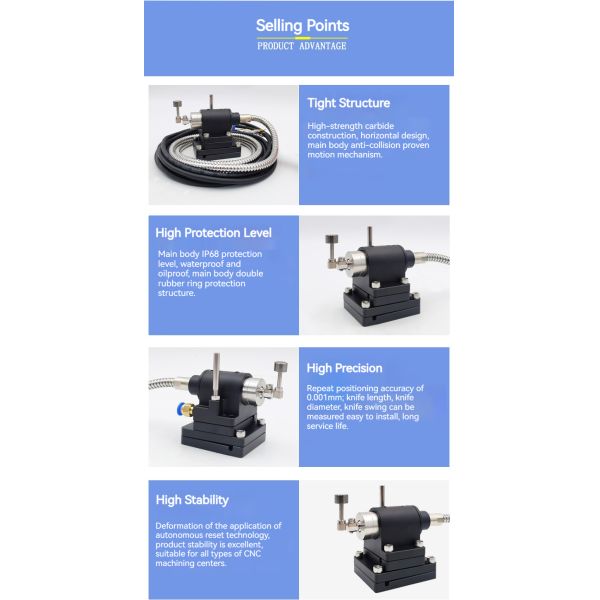

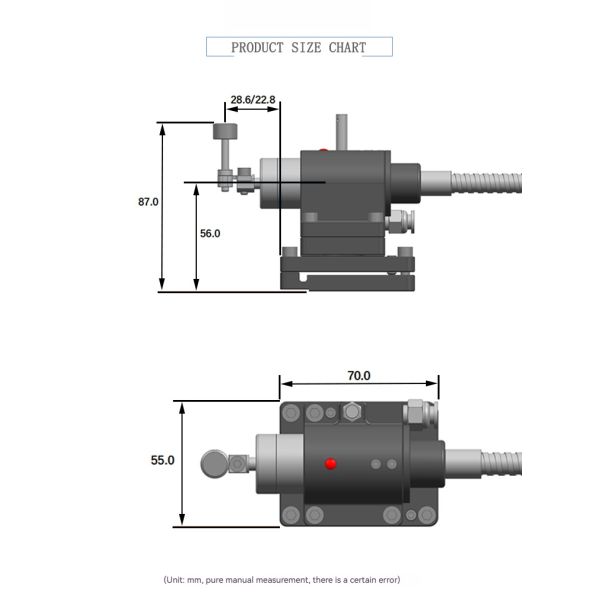

Details Images

CNC Machining Centers 5-direction Tool Setter Measurement Detection XYZ Axis Sensor with 4 Wires and 2 Sets of signal Outputs

Product packaging

We usually use foam board with 3 cm thick to fill in all around the box inside to protect parts. We often use carton to pack the parts, but if it's too heavy, we'll use custom-wooden box to pack it. Package : carton or wooden box Lead time : 1-2 days All products can be shipped around the world via DHL, UPS, FedEx, TNT and more. The package is safe and green. If you have any special needs, please let me know.
